SpeedBox 1.0 for Panasonic (GX series) - Package: BOX, Qty: 20 pcs + 3 free

(34)

More photos (4)

Add to favourites

PROPERTIES:
Activation: activated at all times
Maximum speed: 50 km/h
Display shows: half values
Compatible with motors:
   GX0
   GX Ultimate
   GX Ultimate Pro
   GX Power Plus
   GX Ultimate Pro FIT
Not compatible with: SpeedBox App

In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.
More

Product code: SB1_PAN_20+3pcs_BOX Shipping and Payment

Key features

SpeedBox 1.0 is a basic tuning chip for e-bikes with Panasonic motors. It doubles the e-bike's speed limit from the original 25 km/h to 50 km/h. The display shows speed values at half their real value.

Activated at all times

Once installed, the chip is permanently active — no switching on or off

50 km/h speed

Doubles the e-bike's speed limit from 25 km/h to 50 km/h

Easy installation

Thanks to clear instructions, anyone can install it at home

Compatibility

Panasonic motors: GX0, GX Ultimate, GX Ultimate Pro, GX Power Plus, GX Ultimate Pro FIT

Not compatible with: SpeedBox Connect

Technical specifications

Maximum speed	50 km/h
Display shows	Half values
Activation	Activated at all times
Bluetooth	No
Updates	No
Minimum mileage before installation	10 km (new bike)

Installation

Installing the device is easy and intuitive. Choose the option that suits you best — a video guide, a printed manual, or a detailed step-by-step picture guide.

Video guide

You can find a detailed installation procedure on our YouTube channel

Printed manual

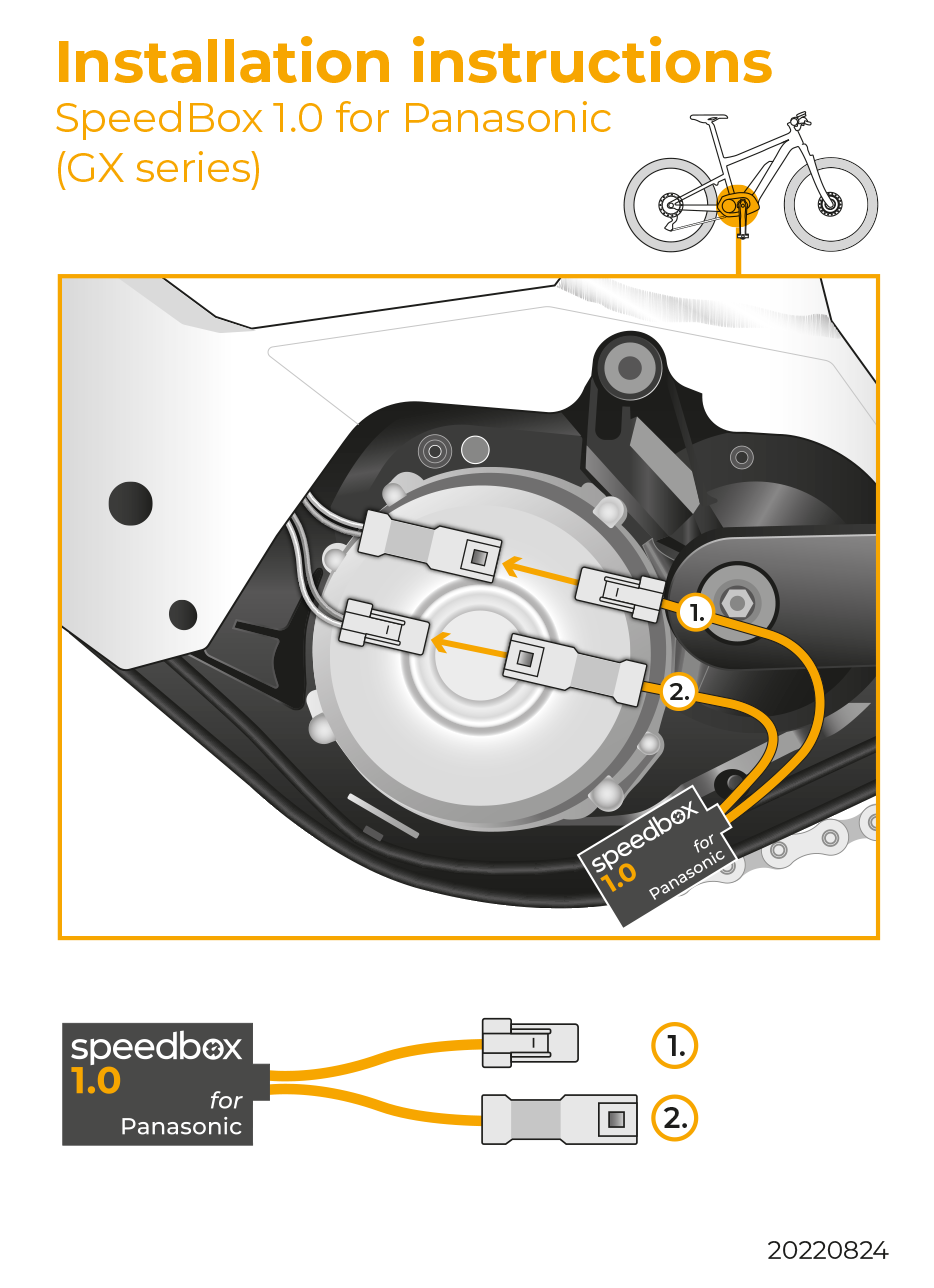

Inside the product package you will find a printed manual including a wiring diagram for connecting the chip to the motor

Tip: To identify the correct speed sensor connector — which is often well hidden inside the frame — gently pull on the sensor cable attached to the rear fork. By gently pulling, you will see which connector moves — this is how you'll find the right one to connect the SpeedBox.

Step by step

The illustrated guide will walk you through the installation step by step — from removing the motor cover to the test ride. Each step is accompanied by photos and a clear description.

User manual →

Warning

Rules for using derestricted e-bikes vary by country, so check local legislation before riding.
SpeedBox is intended for off-road use only and you use it at your own risk.
The manufacturer is not liable for damage caused by illegal or improper use.
Installation may also void your e-bike warranty.
For your safety, use appropriate protective gear and ride with maximum caution.
In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software, and then reinstall SpeedBox.
