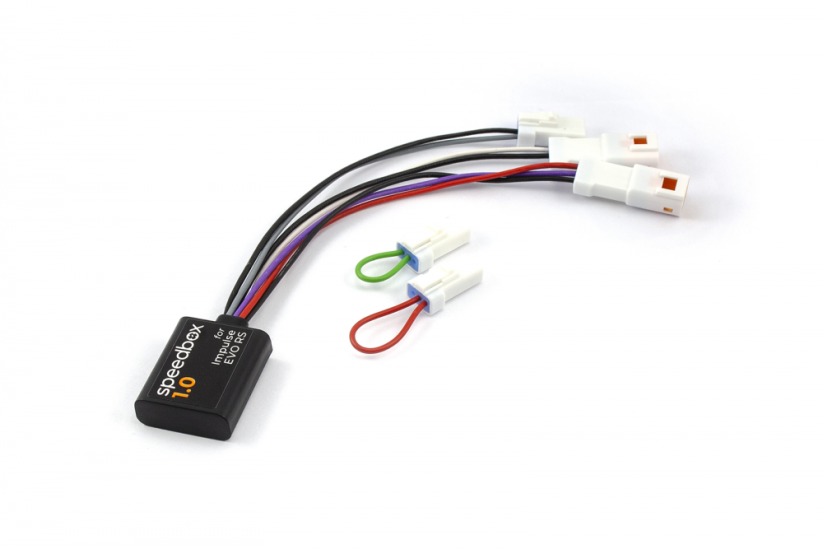

SpeedBox 1.0 for Impulse EVO RS - Package: BAG, Qty: 100 pcs + 16 free
Activation/ deactivation: by plugging the green/ red wire into the connector
Maximum speed: up to 50 km/h
Display shows: half values
Compatible with motors: Impulse EVO RS
Not compatible with: SpeedBox App
In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.
Product code: SB1_I_EVO_100+16pcs_BAGShipping and Payment
Basic tuning kit for your e-bike with Impulse motor.
SpeedBox 1.0 enables to double the speed limit of an e-bike from the original 25 km/h to 50 km/h. When applied, the actual speed is displayed in half values. The display also shows your trip and other aspects of your ride.
How does SpeedBox 1.0 work?
SpeedBox 1.0 is activated by plugging in the corresponding connector which is delivered with the SpeedBox 1.0 for Impulse EVO RS . SpeedBox 1.0 is activated by plugging the green wire into the connector. The electric motor assistance will then function up to the speed of 50 km/h. Deactivation is achieved by plugging in the red wire and the original speed limit of 25 km/h is then reactivated.

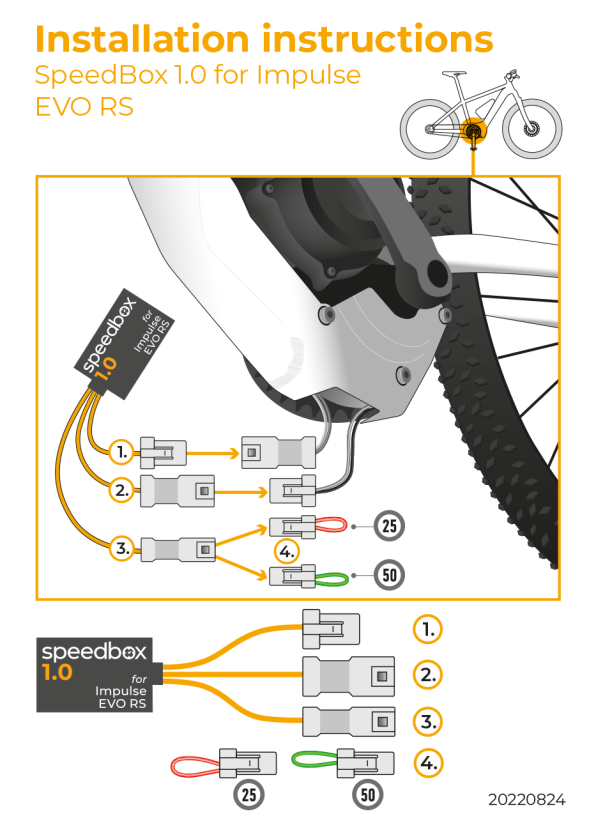

When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you in the comfort of your home. Disassembly of our tuning chip is just as easy. If you have any troubles with the installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.
Detailed installation information can be found here.
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your ebike.
We strongly recommend using other safety features and protective gear to prevent injuries.
